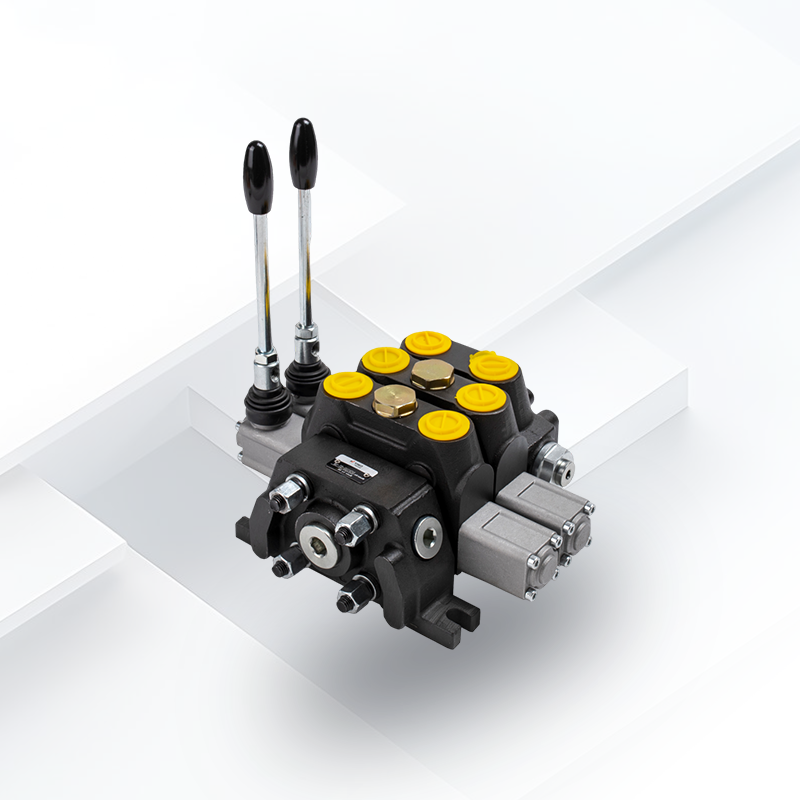

The DCV100 Sectional Directional Valve is a high-performance, manual 2-spool hydraulic control valve designed for precise flow regulation in demanding mobile applications. Rated at 100 L/min (26.5 US gpm) and capable of withstanding a maximum pressure of 350 bar (5100 psi), this sectional valve ensures reliable operation in high-pressure hydraulic systems.
Its modular sectional design allows for flexible configuration, making it ideally suited for excavators, forklifts, loaders, and agricultural machinery. Available with customizable control options and auxiliary valves to meet your specific system requirements.
Technical Parameters
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
|---|---|
| Operating Viscosity Range | 15 – 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 350 bar (5100 psi) |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Structure Type | Sectional valve |
| Control Method | Manual |
| Section | 1 Section to 8 |
Applications
The DCV100 Sectional Directional Valve is widely used in various mobile hydraulic systems, including:
- Construction Machinery: Excavators, loaders, and backhoes.
- Agricultural Equipment: Tractors and harvesters.
- Material Handling: Forklifts and telehandlers.
Its modular design allows for easy integration and maintenance in these demanding environments.
