Arabic Technical Parameters
| Specification | 10 | 15 | 20 | 25 | 30 | |
| Max working pressure(Mpa) | 35 | |||||
| Max. flow(L/min) | 250 | 500 | 500 | 500 | 600 | |
| Working voltage | DC | 12/24 | ||||
| AC | 110/220 | |||||
| Pressure adjustment(Mpa) | 5 / 10 / 20 / 31.5 / 35 | |||||
| Design number | 50 | |||||

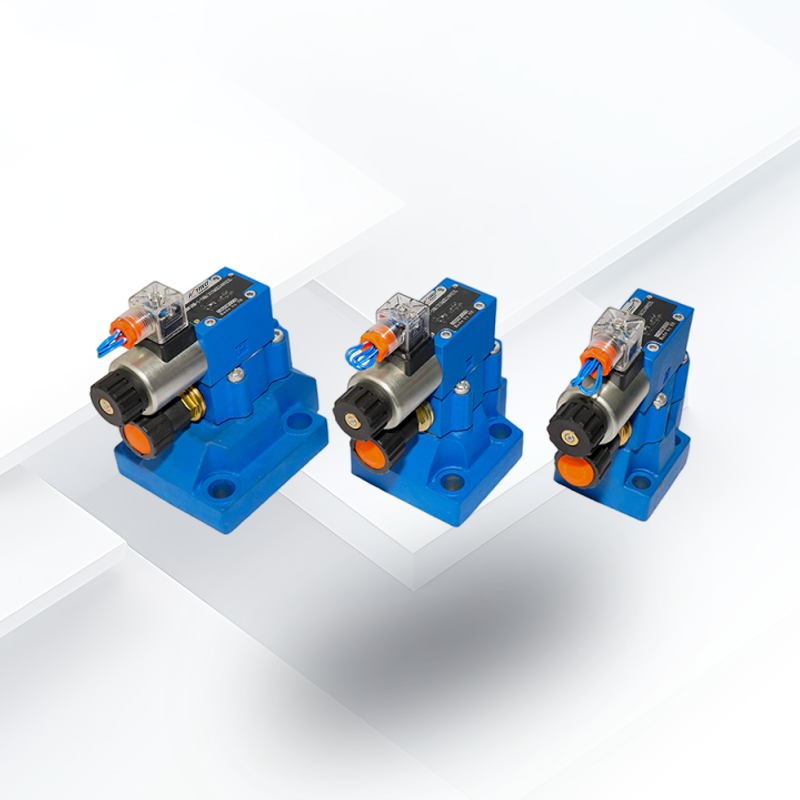

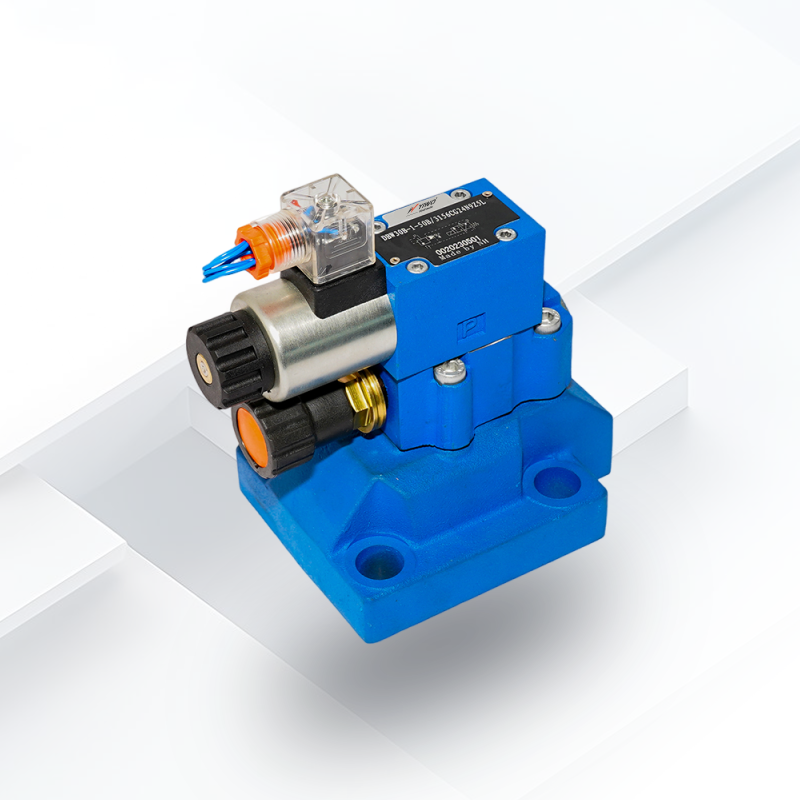

DB/DBW pressure control valves GD-DBW30B
- Name: DB/DBW pressure control valves
- Model No.: GD-DBW30B
- Size 10 to 32
- Maximum working pressure 350 bar
- Maximum working flow 650L/min
- Subplate mounting: size 10/20/30
- Threaded connection:size 10/15/20/25/32
- Setting pressure:5MPa/10MPa/20MPa/31.5bar/35MPa
- Flow rate:250L/min (for size 10 only),500L/min (for size 15, 20, 25),650L/min (for size 32 only)
